Category:
Name:7482
Short description:2-bit binary full adder
Symbol:

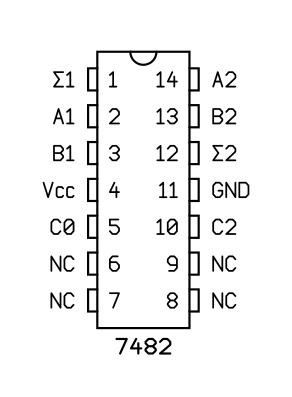

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN7482N
