Components
Category:
Name:7485
Short description:4-bit magnitude comparator
Symbol:

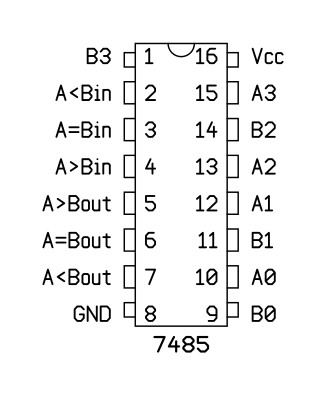

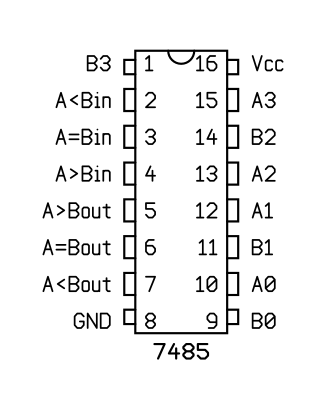

Pinout: Default Style: GOST

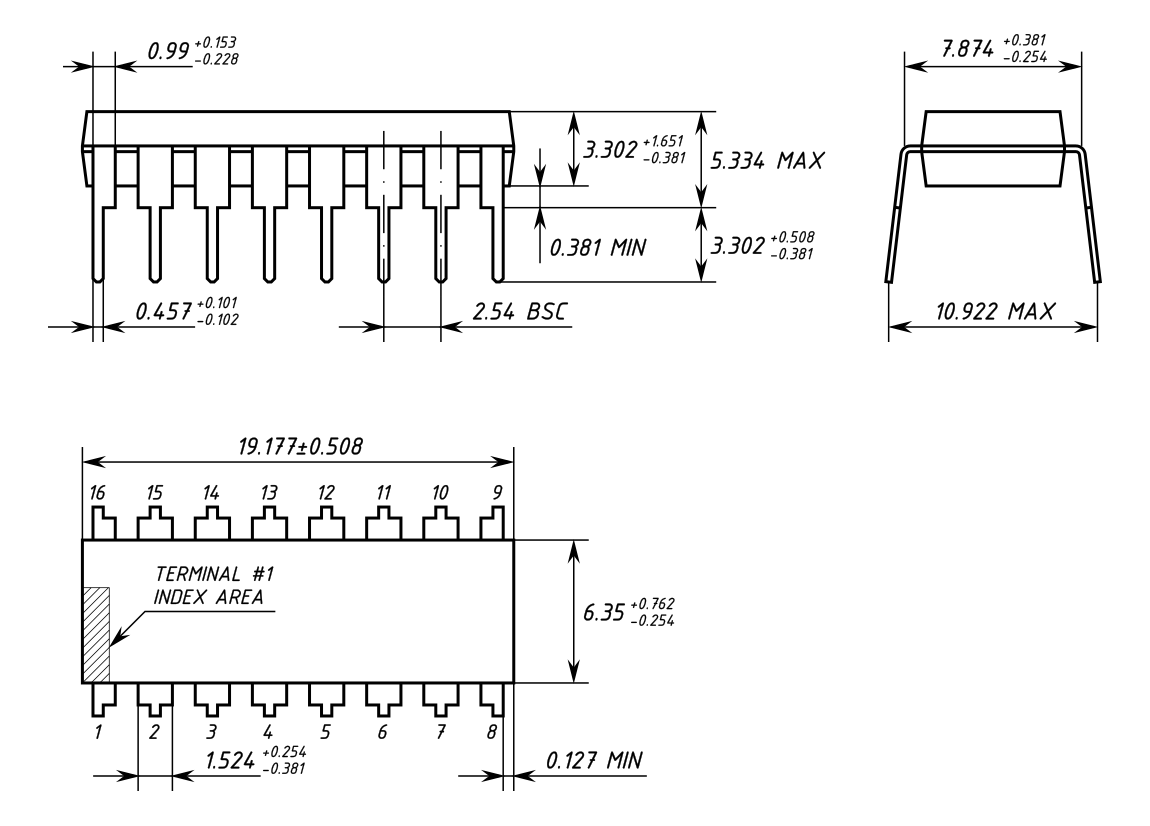

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7485N
