Name:7486
Short description:Quadruple 2-input exclusive-OR gates
Symbol:

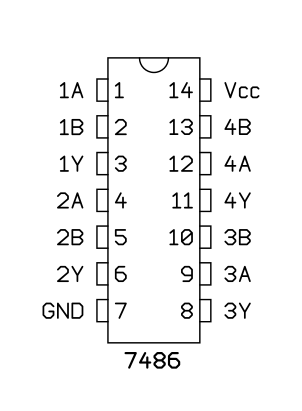

Pinout: Default Style: GOST

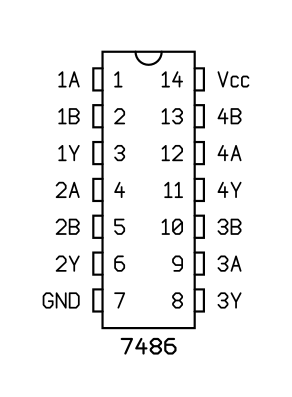

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7486N
