Category:
Name:74107
Short description:Dual J-K flip-flops with clear
Symbol:

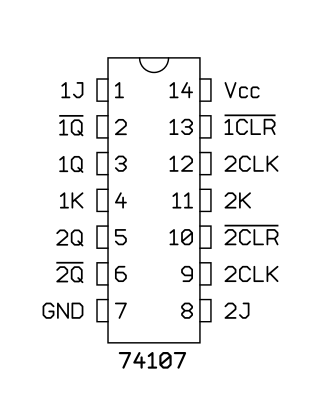

Pinout: Default Style: GOST

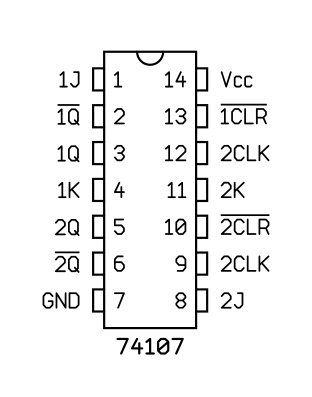

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74107N
