Name:74109
Short description:Dual J-K positive-edge-triggered flip-flop with preset and clear
Symbol:

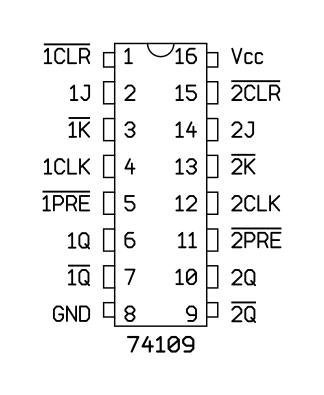

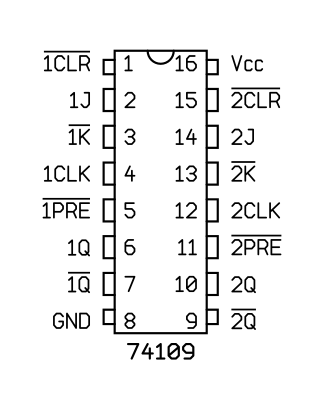

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74109N
