Category:
Name:74110
Short description:AND-gated J-K master-slave flip-flops with data lockout
Symbol:

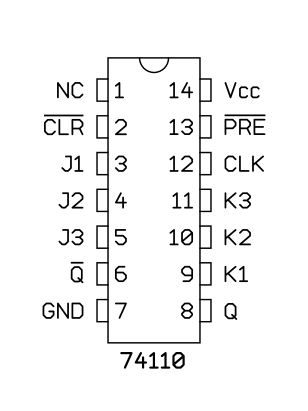

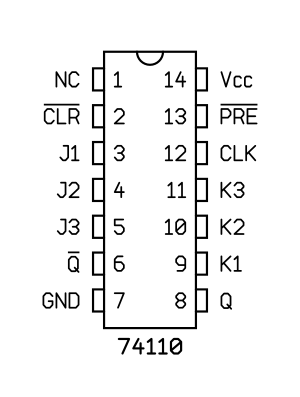

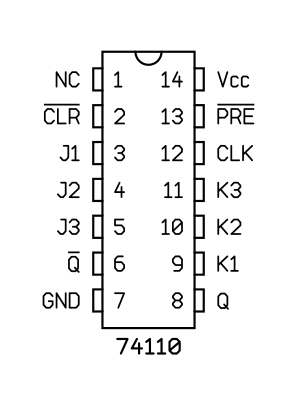

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74110N
