Category:
Name:74116
Short description:Dual 4-bit latch with clear
Symbol:

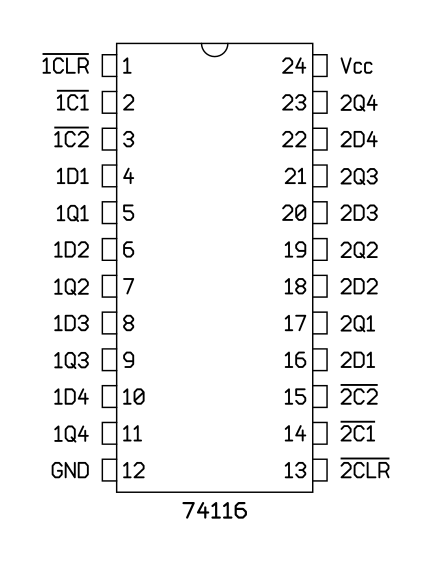

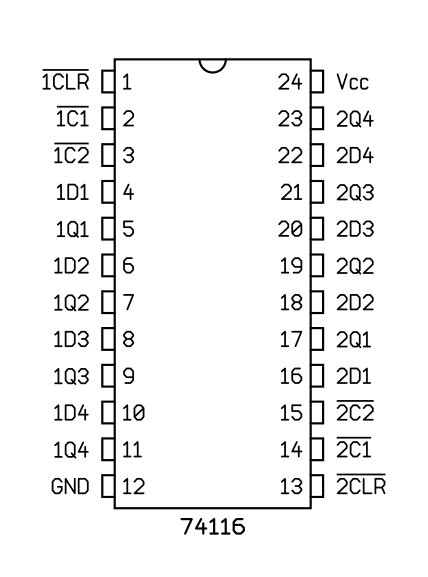

Pinout: Default Style: GOST

PDIP-24W (JEDEC MS-011, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74116N
