Category:
Name:74132
Short description:Quadruple 2-input positive-NAND Schmitt triggers
Symbol:

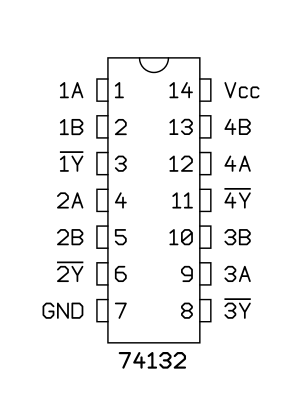

Pinout: Default Style: GOST

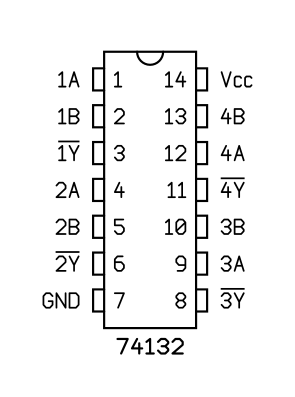

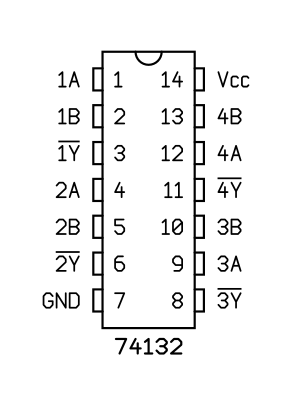

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74132N
