Name:74136
Short description:Quadruple 2-input Exclusive-OR gates with open collector outputs
Symbol:

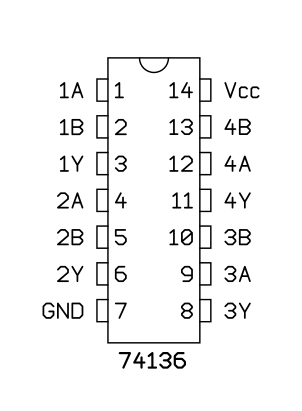

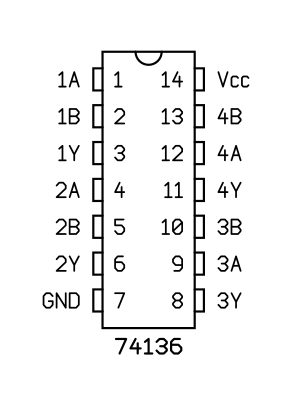

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74136N
