Category:
Name:74141
Short description:BCD to decimal decoder/driver for cold-cathode indicator / Nixie tube
Symbol:

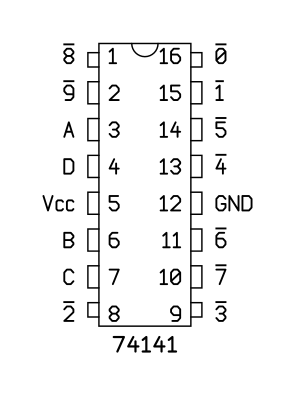

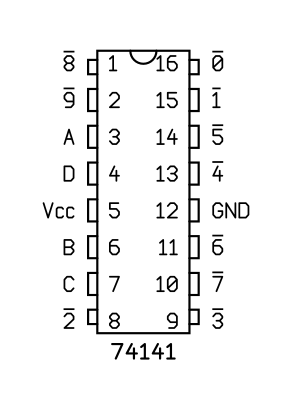

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74141
