Category:
Name:74144
Short description:4-bit decade counter, latch, decoder, seven-segment lamp driver
Symbol:

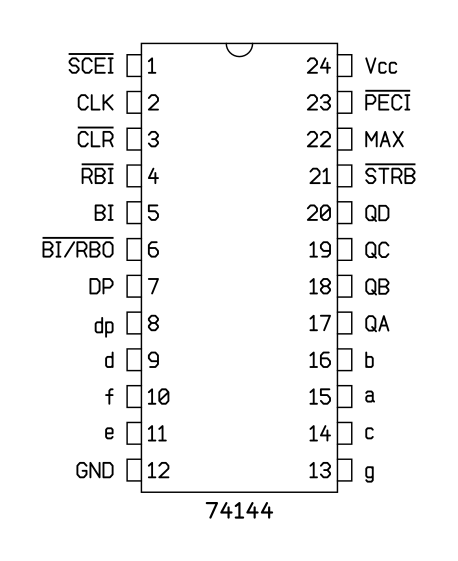

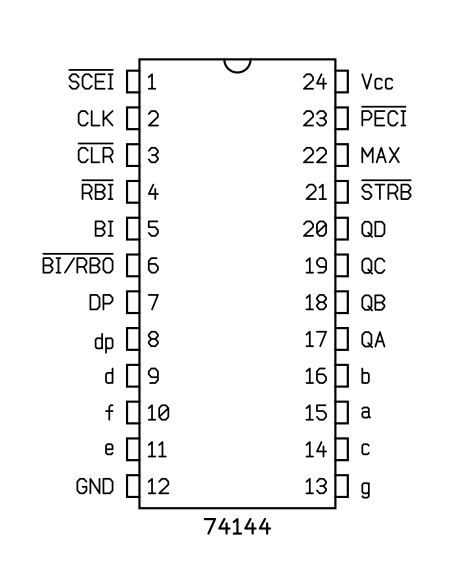

Pinout: Default Style: GOST

PDIP-24W (JEDEC MS-011, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74144N
