Category:
Name:74147
Short description:10-line to 4 line priority encoder
Symbol:

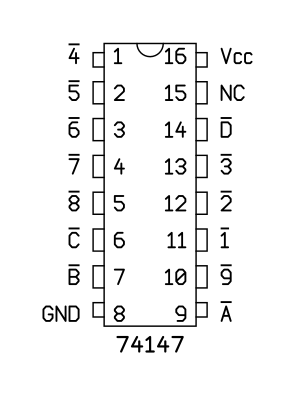

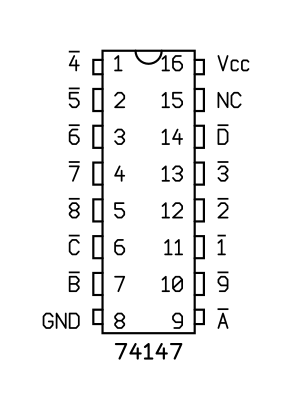

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74147N
