Category:
Name:74150
Short description:16-line to 1-line data selector/multiplexer

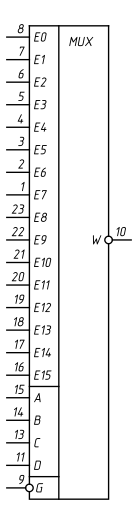

Symbol:

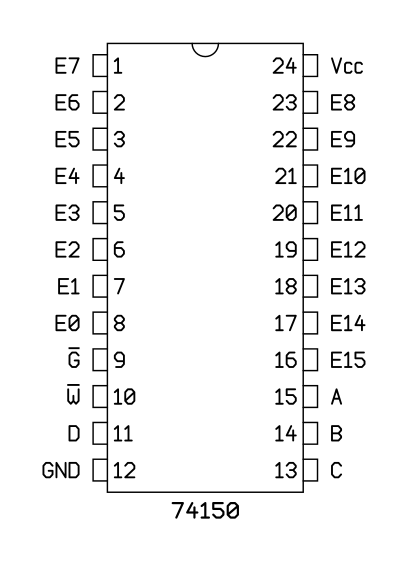

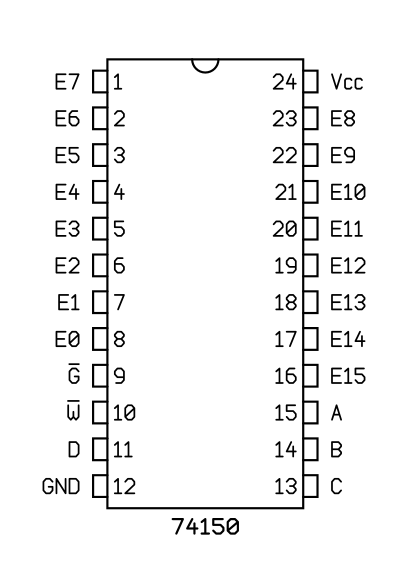

Pinout: Default Style: GOST

PDIP-24W (JEDEC MS-011, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74150N
