Name:74151
Short description:8-line to 1-line data selector/multiplexer

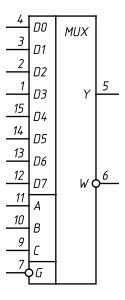

Symbol:

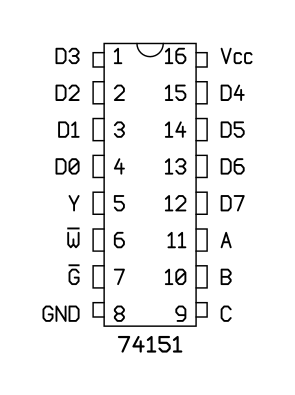

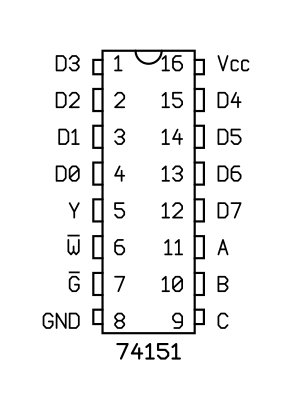

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74151AN
