Category:
Name:74153
Short description:Dual 4-line to 1-line data selector/multiplexer

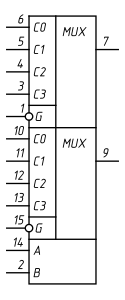

Symbol:

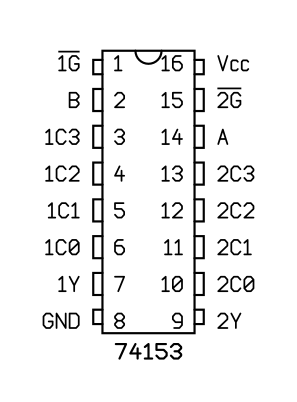

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74153N
