Category:
Name:74156
Short description:Dual 2-line to 4-line decoder/demultiplexer with open collector outputs
Symbol:

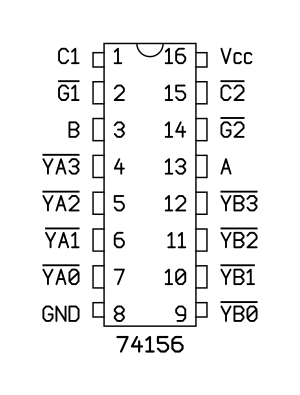

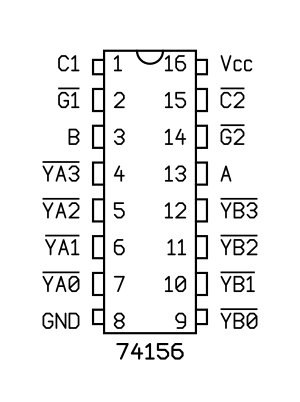

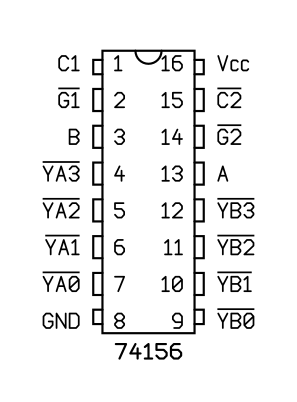

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74156N
