Category:
Name:74159
Short description:4-line to 16-line decoder/demultiplexer with open collector outputs

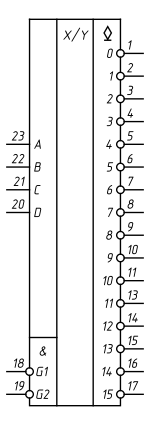

Symbol:

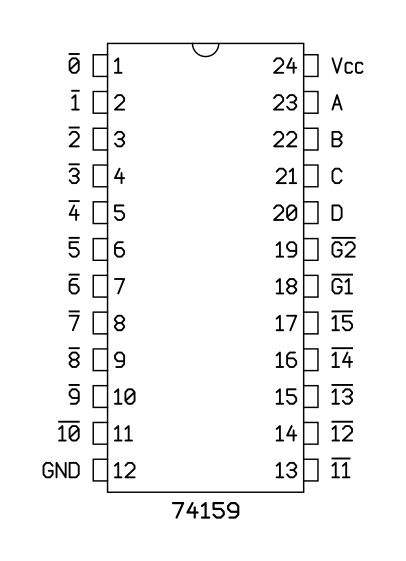

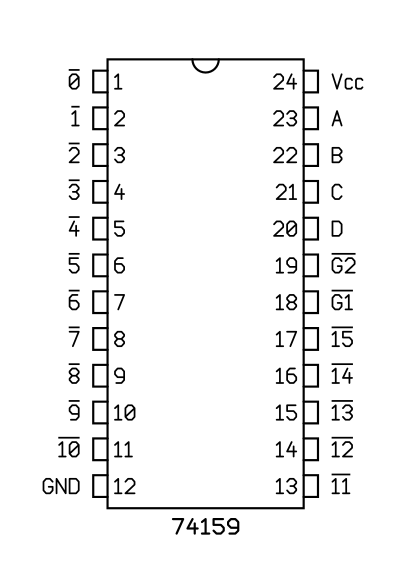

Pinout: Default Style: GOST

PDIP-24W (JEDEC MS-011, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74159N
