Category:
Name:74160
Short description:Synchronous 4-bit decade counter with asynchronous clear
Symbol:

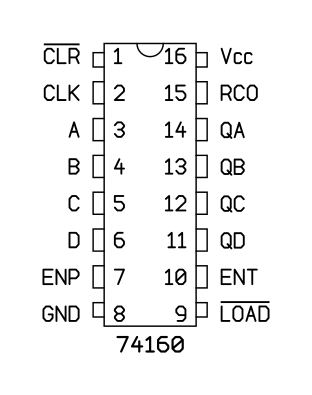

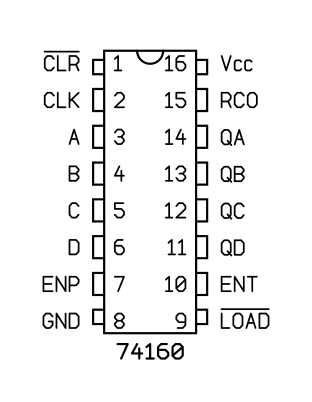

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74160N
