Category:
Name:74163
Short description:Synchronous 4-bit binary counter with synchronous clear
Symbol:

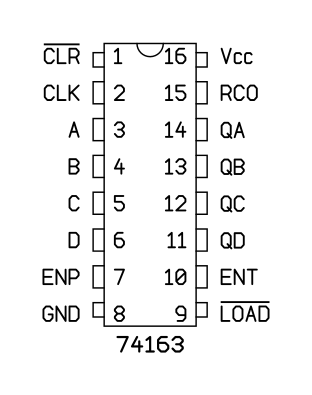

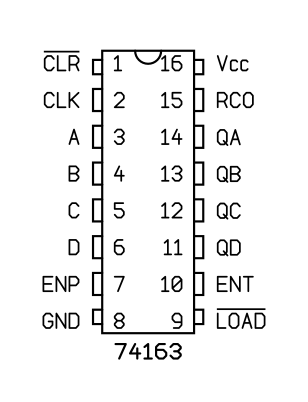

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74163N
