Category:
Name:74172
Short description:16-bit multiple-port register file with 3-state outputs

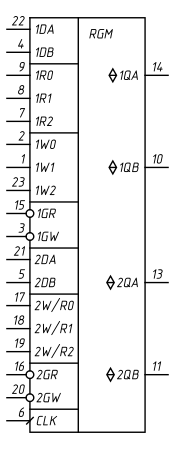

Symbol:

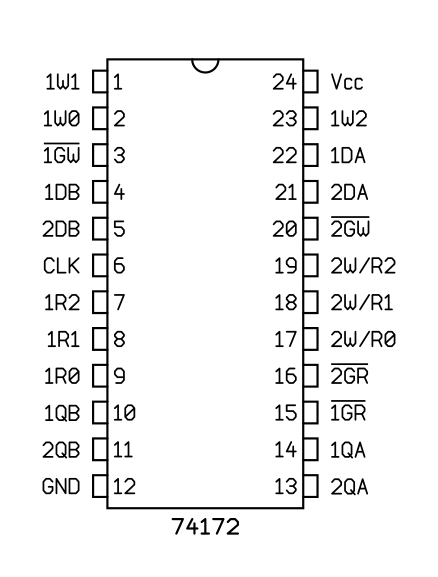

Pinout: Default Style: GOST

PDIP-24W (JEDEC MS-011, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74172N
