Category:
Name:74174
Short description:Hex D-type Flip-Flops with clear
Symbol:

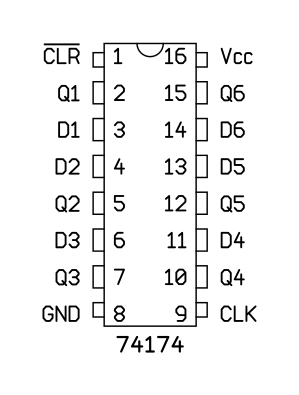

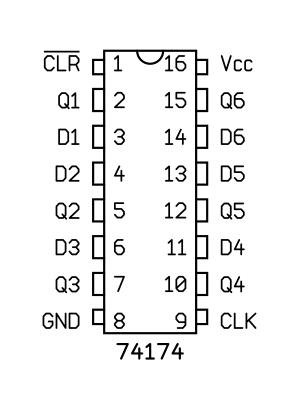

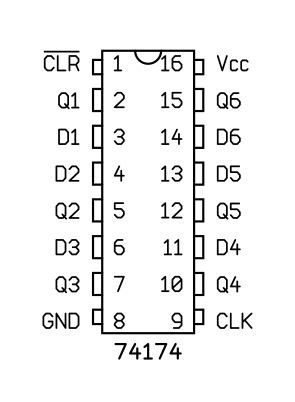

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74174N
