Category:
Name:74190
Short description:Synchronous presettable up/down 4-bit decade counter
Symbol:

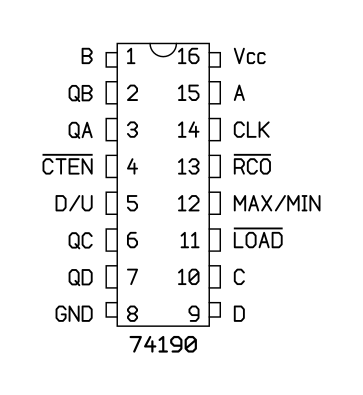

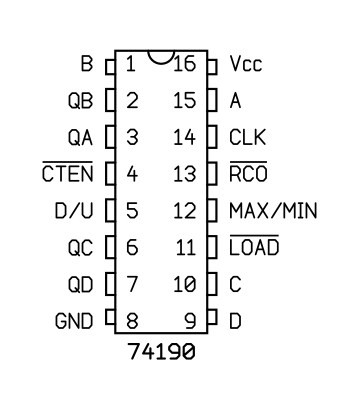

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74190N
