Category:
Name:74196
Short description:Presettable 4-bit decade counter/latch
Symbol:

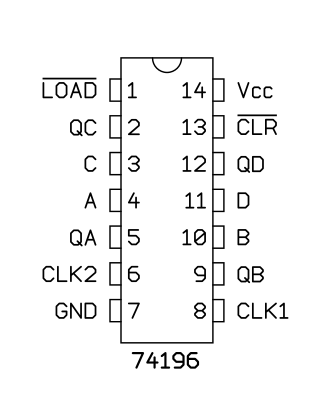

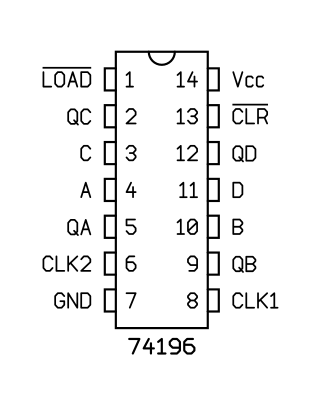

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74196N
