Category:
Name:74197
Short description:Presettable 4-bit binary counter/latch
Symbol:

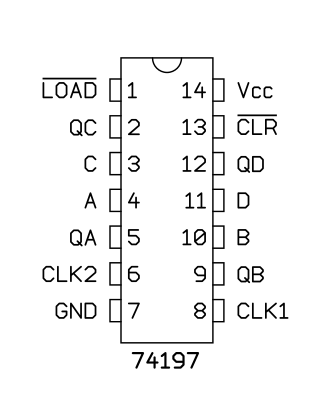

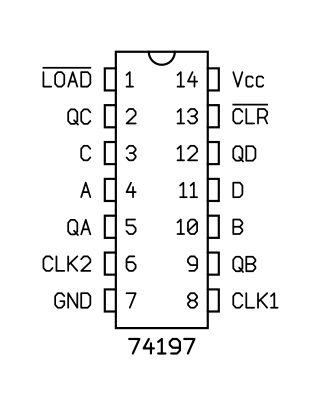

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74197N
