Category:
Name:74199
Short description:8-bit shift register

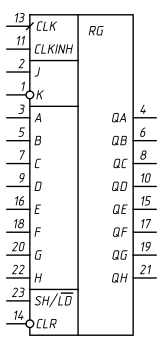

Symbol:

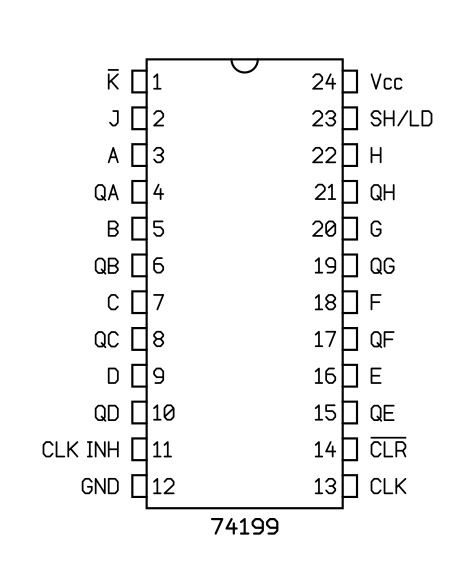

Pinout: Default Style: GOST

PDIP-24W (JEDEC MS-011, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74199N
