Category:
Name:74246
Short description:BCD to seven-segment decoder/driver
Symbol:

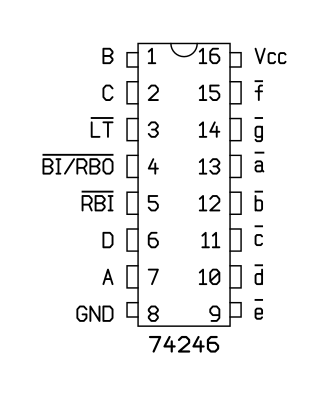

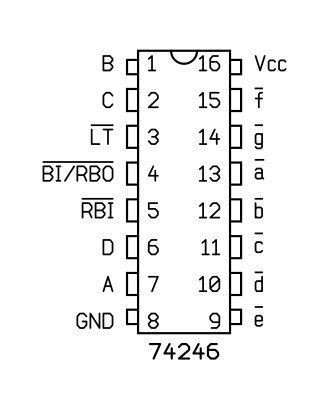

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74246N
