74LS266
Quadruple 2-input exclusive-NOR gates with open collector output
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

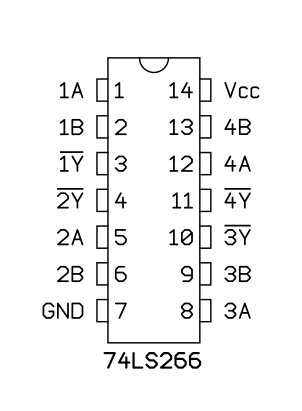

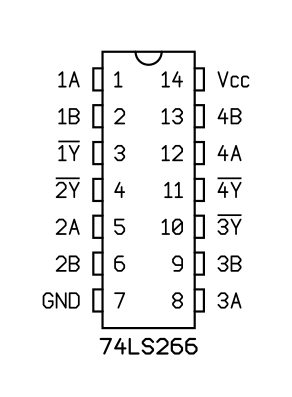

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS266N
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
