Category:
Name:74LS273
Short description:Octal D-type flip-flop with clear
Symbol:

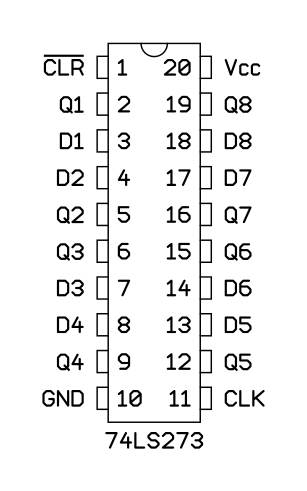

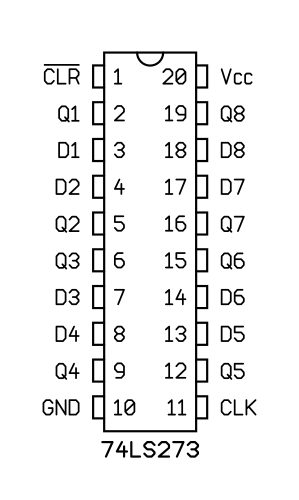

Pinout: Default Style: GOST

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS273N
