Category:
Name:74LS280
Short description:9-bit odd/even parity generator/checker
Symbol:

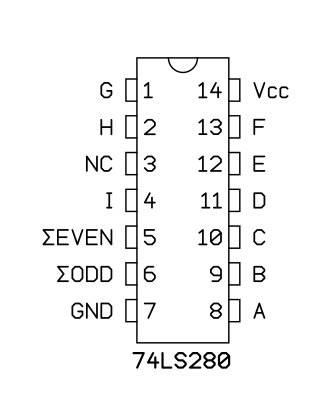

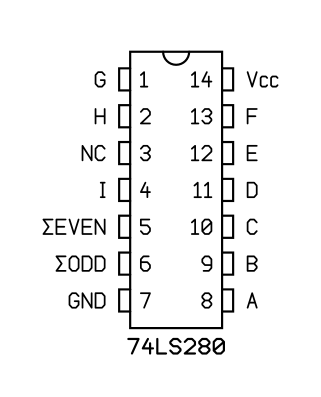

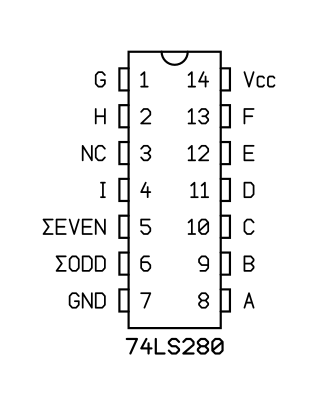

Pinout: Default Style: GOST

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS280N
