Name:74284
Short description:4-bit by 4 bit parallel binary multiplier (high order 4 bits of product)
Symbol:

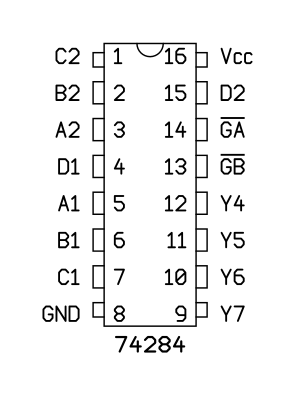

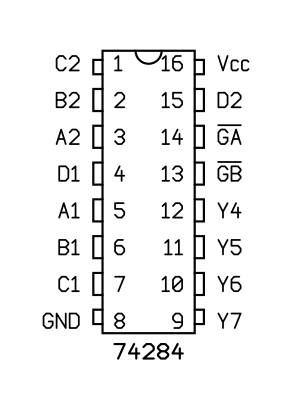

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74284N
