74LS295
4-bit right-shift left-shift register
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

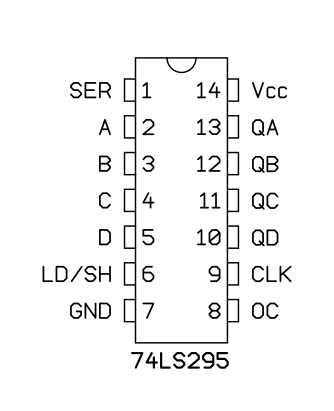

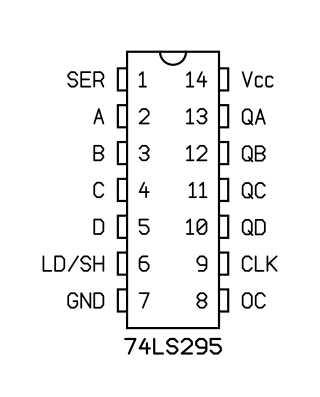

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS295BN
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
