Name:74LS297
Short description:Digital phase-locked-loop filter
Symbol:

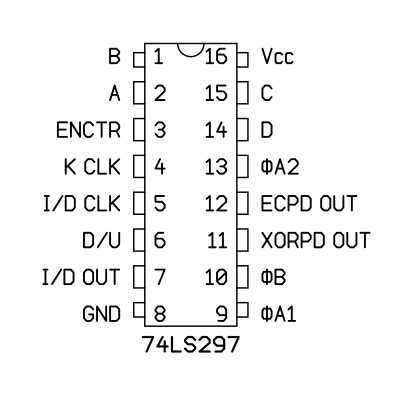

Pinout: Default Style: GOST

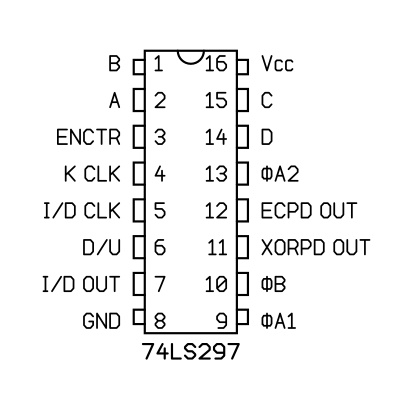

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS297N
