74LS321
Crystal-controlled oscillator with f/2 and f/4 count-down outputs

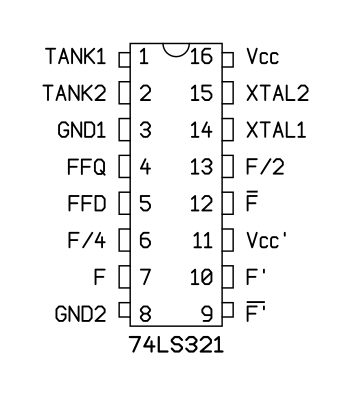

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

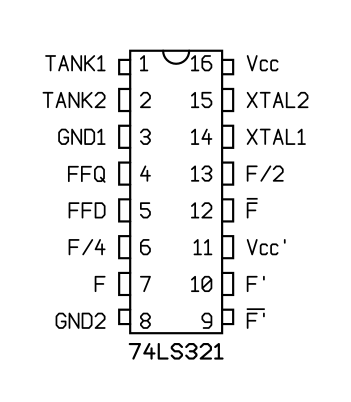

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS321N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
