Name:
74LS322
Short description:
8-bit shift register with sign extend

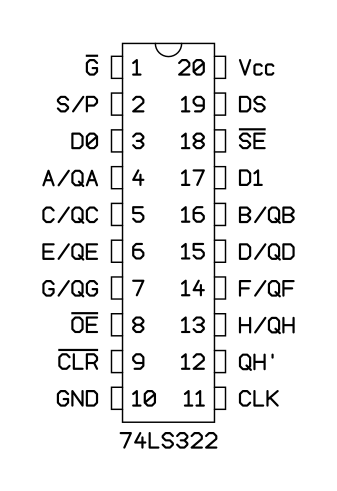

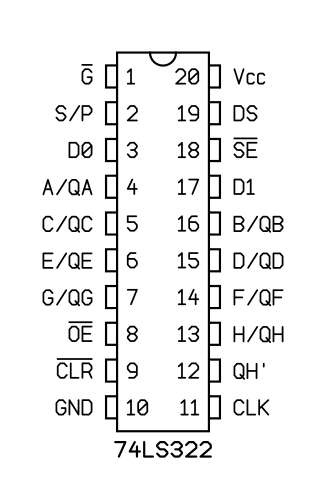

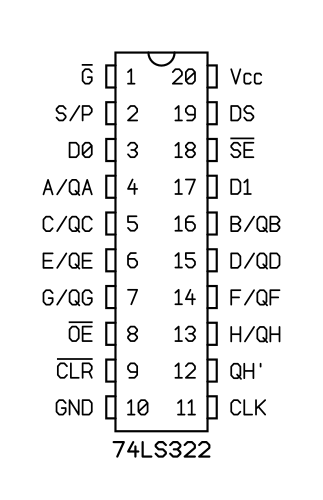

Symbol:
PDIP-20N (JEDEC MS-001, Variation AD)
Vendor
Part number / Specifications
Texas Instruments
SN74LS322AN
