74LS348
8-line to 3-line priority encoder with 3-state outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

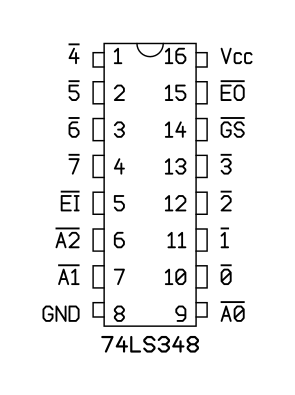

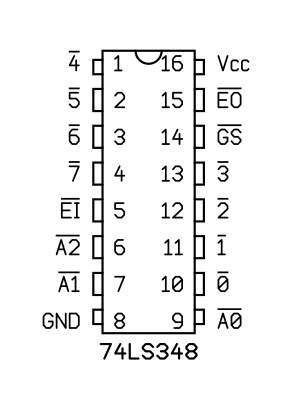

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS348N
Manufacturer:
Motorola
Part number:
SN74LS348N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
