Category:
Name:74LS352
Short description:Dual 4-line to 1-line data selector/multiplexer

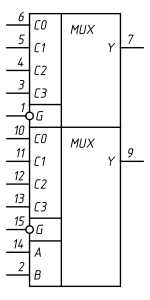

Symbol:

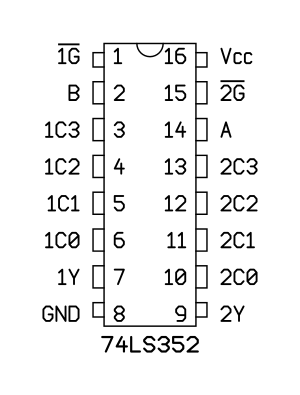

Pinout: Default Style: GOST

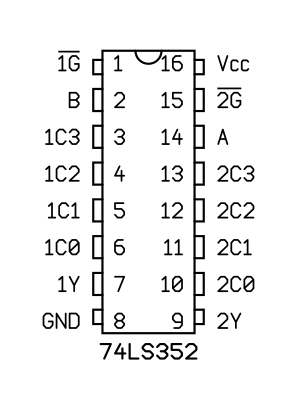

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS352N
