74LS353
Dual 4-line to 1-line data selector/multiplexer with 3-state outputs

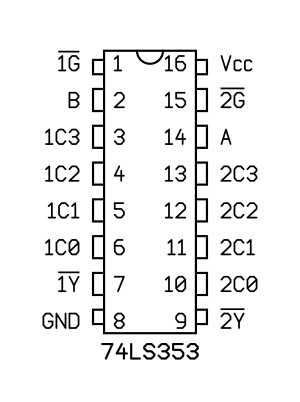

Pinout:
Default
Style:

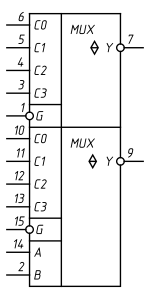

GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS353N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
