74LS354
8-line to 1-line data selector/multiplexer, transparent register with 3-state outputs

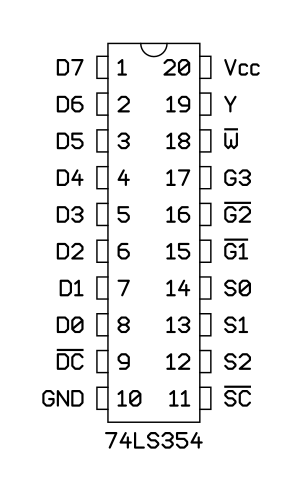

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS354N
PDIP-20 (JEDEC MS-001, Variation AD)

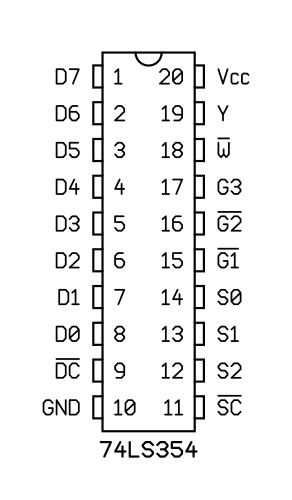

package diagram
