Category:
Name:74366
Short description:Hex bus drivers with inverted 3-state outputs
Symbol:

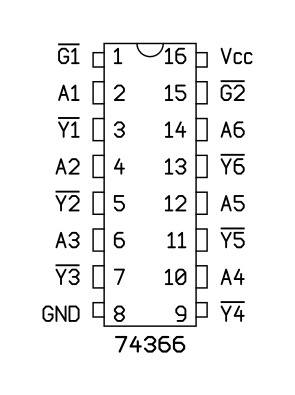

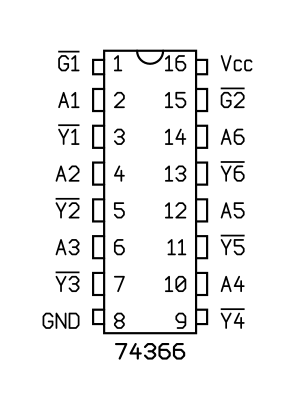

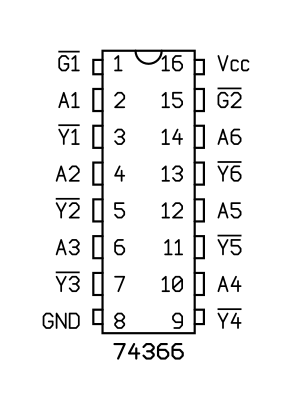

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74366AN
