Category:
Name:74LS375
Short description:4-bit bistable latch with complementary outputs
Symbol:

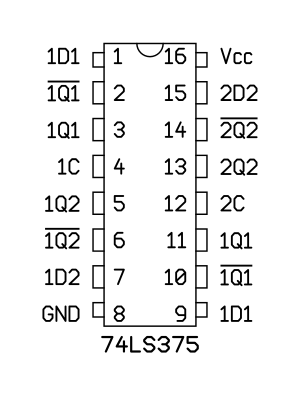

Pinout: Default Style: GOST

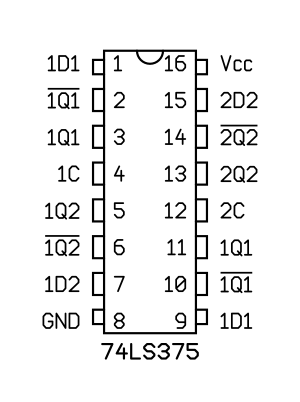

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS375N
