Name:74LS446
Short description:Quadruple inverting bus transceivers with individual direction control and 3-state outputs
Symbol:

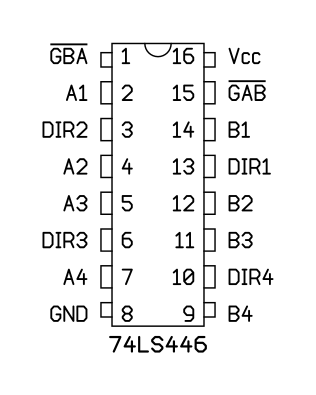

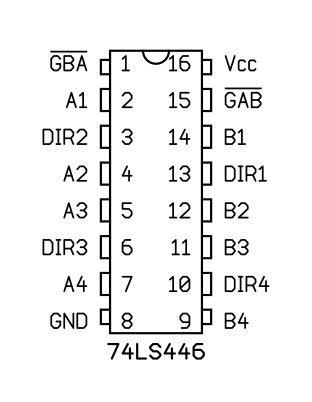

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74LS446N
