74LS467
Two quadruple buffers with 3-state outputs

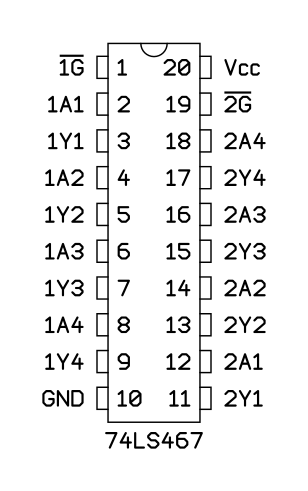

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

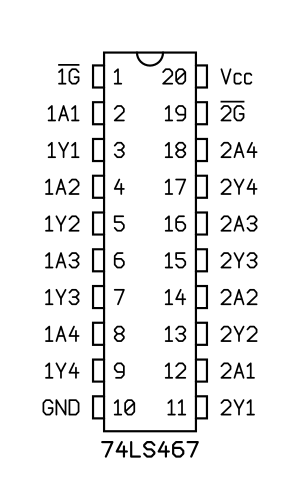

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS467N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
