Category:
Name:74LS630
Short description:16-bit parallel error detection and correction circuit

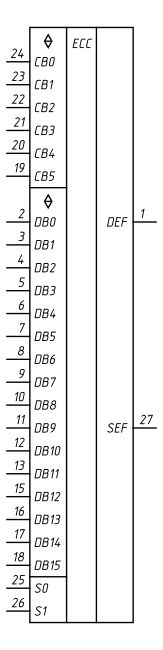

Symbol:

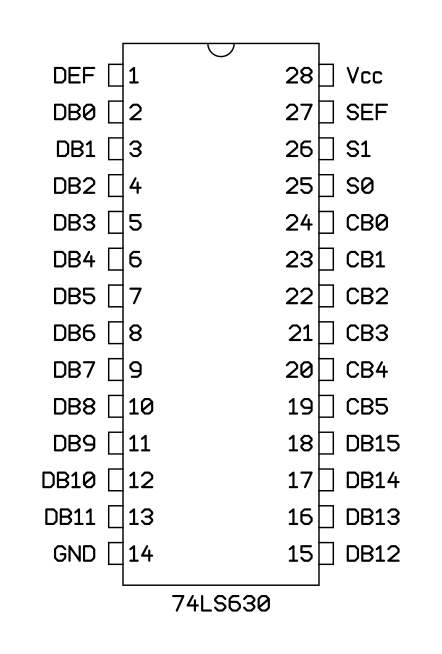

Pinout: Default Style: GOST

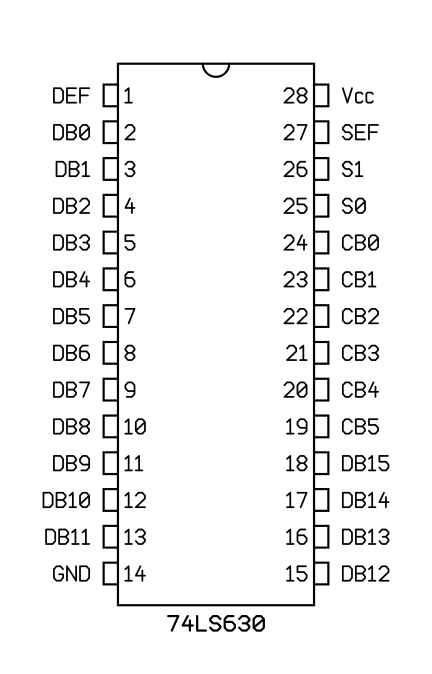

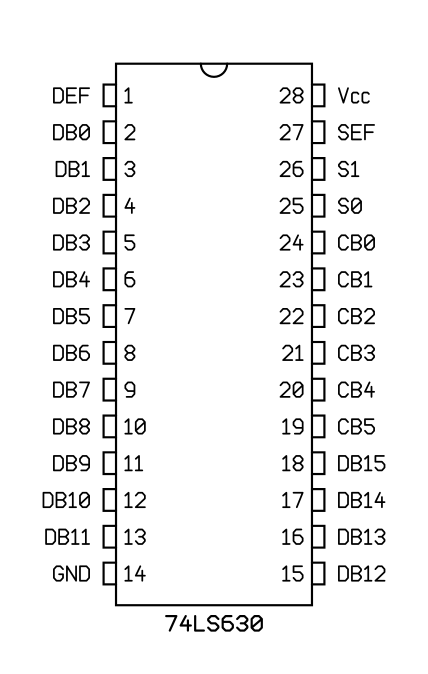

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS630N
