Name:74LS683
Short description:8-bit magnitude/identity comparator with open collector outputs

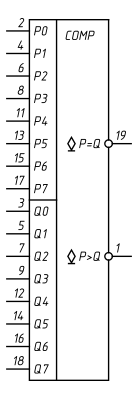

Symbol:

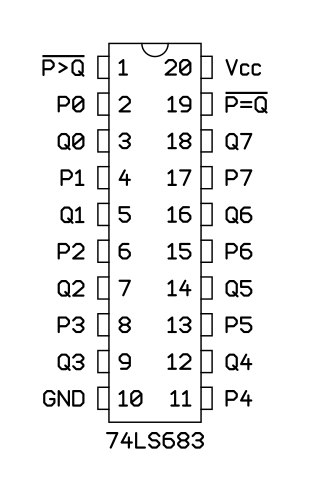

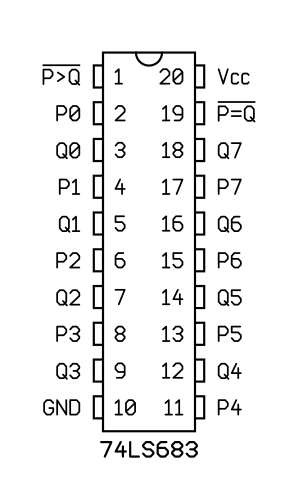

Pinout: Default Style: GOST

PDIP-20N (JEDEC MS-001, Variation AD)

VendorPart number / Specifications
Texas InstrumentsSN74LS683N
