74LS689
8-bit magnitude/identity comparator with open collector outputs
Pinout:
Default

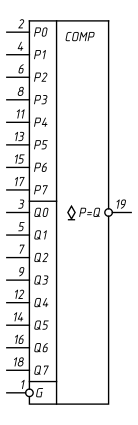

Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

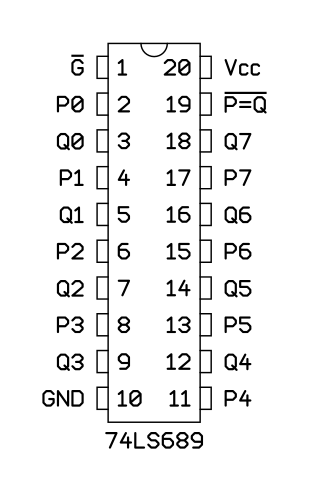

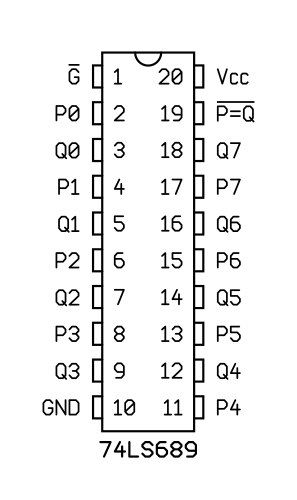

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS689N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
