74LS693

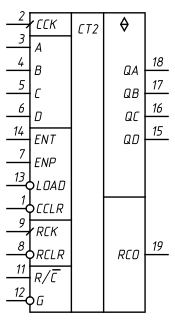

Synchronous binary counter with output register and multiplexed 3-state outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

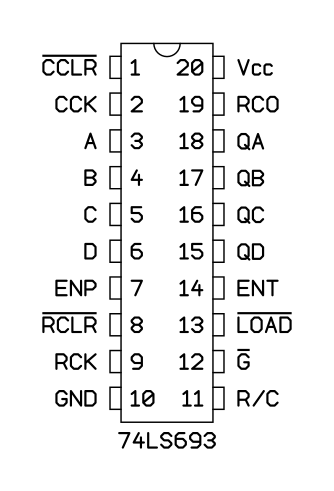

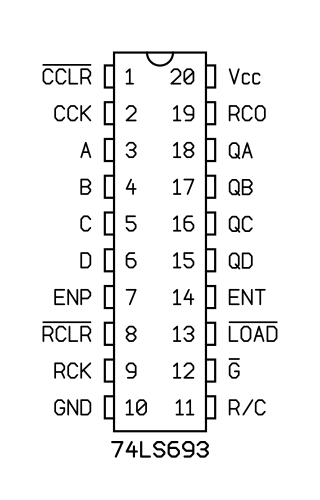

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS693N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
