Category:
Name:7488
Short description:Factory programmed 256-bit read-only memory (32 words by 8 bits)
Symbol:

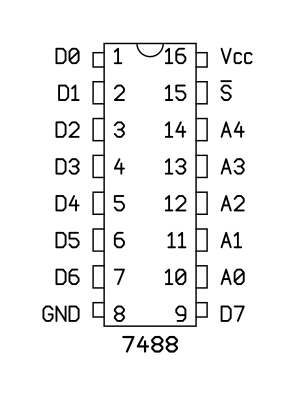

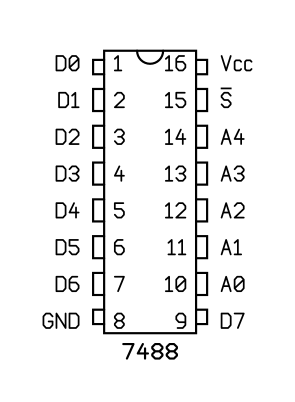

Pinout: Default Style: GOST

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN7488AN
