Category:
Name:74104
Short description:Gated J-K master-slave flip-flops

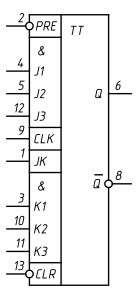

Symbol:

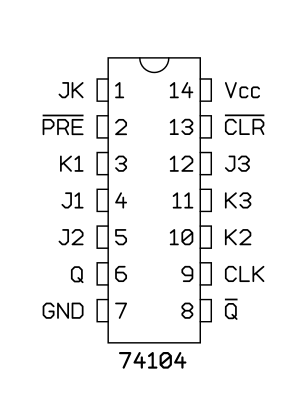

Pinout: Default Style: GOST

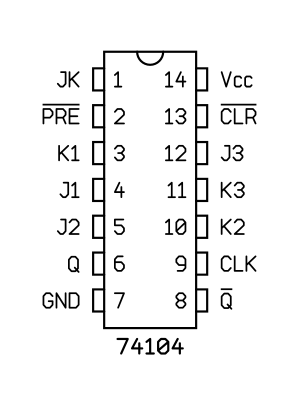

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74104N
