Name:74LS604
Short description:Octal 2-input multiplexed latches with 3-state outputs

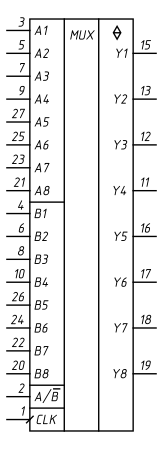

Symbol:

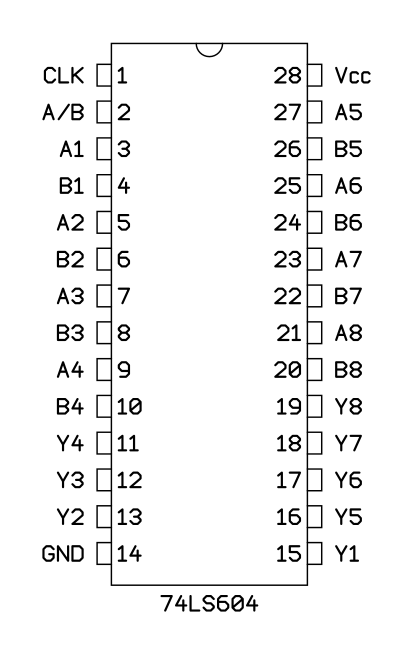

Pinout: Default Style: GOST

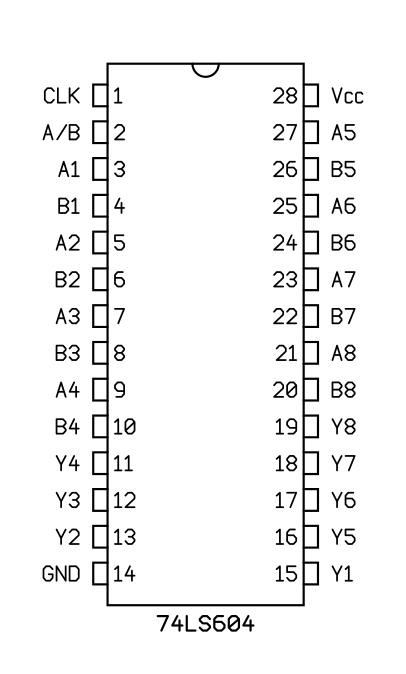

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS604N
