74LS605
Octal 2-input multiplexed latches with open collector outputs

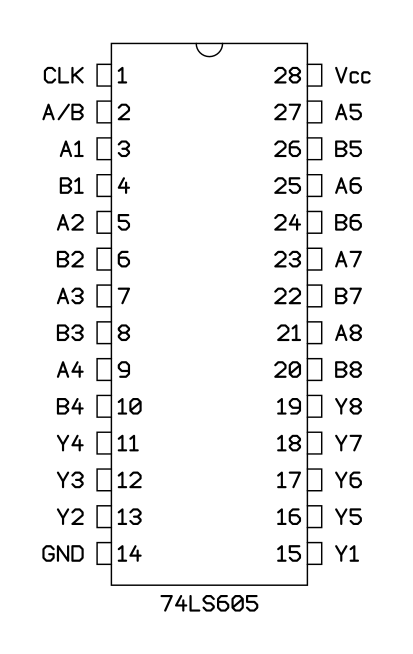

Pinout:
Default

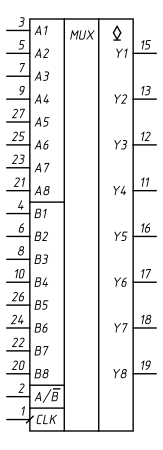

Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)

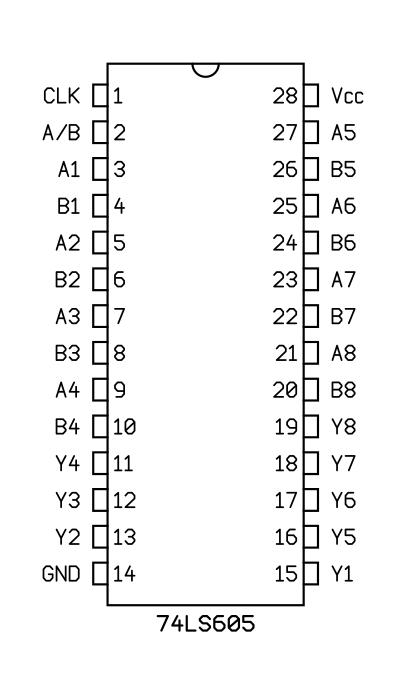

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS605N
PDIP-28W (JEDEC MS-011, Variation AB)
package diagram
